NSO evo3 16-inch Display

SKU: 000-14001-001

This high-performance 16-inch multifunction display is perfect for offshore cruisers and sportfishing boats. Enjoy intuitive touchscreen access to charts, sonar, radar, autopilot control, and much more. It’s easy to build your perfect system by combining multiple displays and your choice of accessories.

View Key Features View Specifications

Screen Size Options What's this:

16"

Map Options What's this:

Preloaded Basemap

Transducer Options What's this:

None

Find a dealer

Complete your ultimate boat with NSO evo3. This navigation system puts you in total control of your on-board electronics through intuitive touchscreen controls. A stunning Full HD display, available in 16, 19 or 24-inch widescreen sizes, lets you see more than ever, while an integrated high-performance processor ensures a swift response to your every command. Connect your choice of GPS receiver, sonar, radar, autopilot, and other accessories to create your ideal chartplotter, navigation system, fishfinder. NSO evo3 gives you whatever you need to enable and enhance your favorite on-water activities.

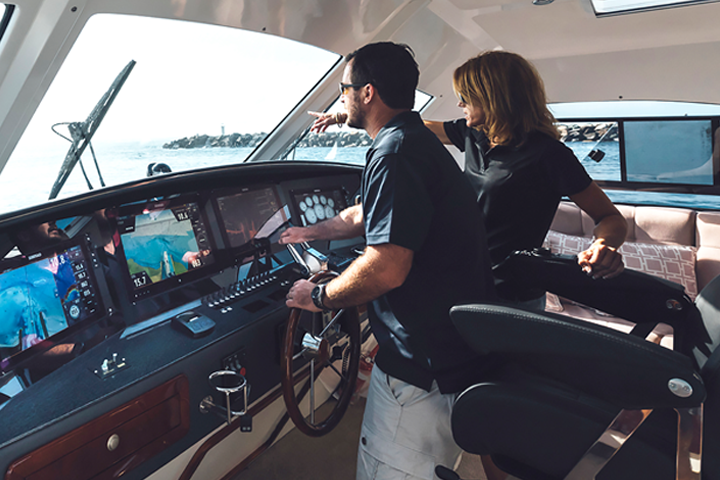

NSO evo3 displays offer the flexibility to create a system that’s perfect for you and your boat. Cruise confidently offshore with a powerful chartplotter navigation system, featuring a big-screen view to rival paper charts. Add autopilot to free your hands from the wheel, and choose from a range of radar and sonar options to offer safer cruising or advanced fish-finding technology.

Choose a 16, 19, or 24-inch ultra-bright widescreen display. No matter the angle, you will always get a clear view, even if you’re wearing polarized sunglasses. See charts, sonar, radar and other views in fine detail with Full HD resolution on every screen size. Focus on one display such as a full-screen chart or sonar view, or combine up to six panels in a split-screen layout.

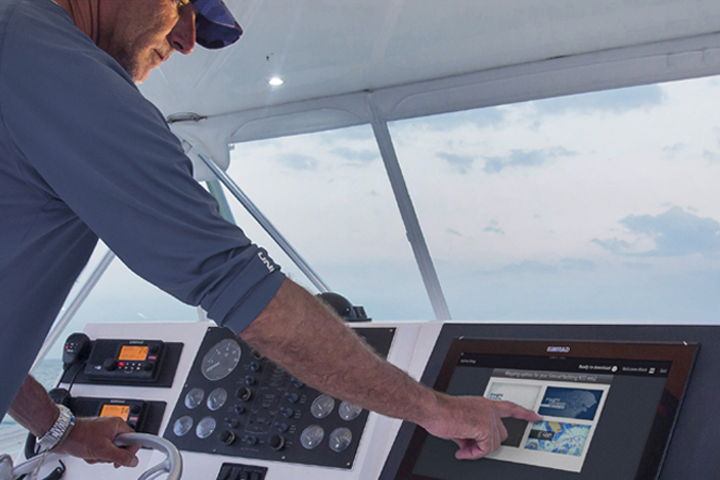

A responsive, multi-touch display places control of your on-board electronics at your fingertips. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar with a touch. Add a keypad for classic controls, perfect for fine adjustments or use in rough conditions.

Every NSO evo3 display features an integrated quad-core processor for smooth response, from viewing charts to exploring beneath the water with StructureScan® 3D imaging. Enjoy swift access to the information you need, as you need it, whether you’re cruising the open ocean or carefully navigating a crowded harbor. Create your own custom helm layouts to suit any activity, and switch seamlessly between those layouts in an instant.

Built-in wireless connectivity links NSO evo3 to your existing mobile devices, enabling you to view your displays and control many functions from a compatible smartphone or tablet. Wireless also delivers easy online software upgrades via any internet hotspot, ensuring you have access to the very latest features and accessory support. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide multi-display systems to engine monitoring, entertainment system control, and much more.

NSO evo3 starter kits contain everything you need to create a basic chartplotter navigation system including an OP50 keypad, external GPS antenna, and chart card reader. The OP50 offers keypad control of up to six separate displays, perfect for a multi-display helm layout. One GPS antenna can provide position data for every networked display on board, so it’s easy to create a vessel-wide system with one starter kit and additional NSO evo3 or NSS evo3 displays.

Key Features

Ultra-bright, Full HD display
Easy touchscreen control of your entire Simrad system
Integrated quad-core processor for ultimate performance.
See more than ever with six-panel split screen option
Connect with smartphones, tablets, and internet hotspots
Optional starter kit includes keypad, GPS antenna, and chart card reader

NMEA 2000 Micro-C Low Loss 4 Way Joiner
N2K-PWR-RD Network Power Node
TR-120-KIT Network Terminator Kit
NMEA 2000 6ft Network Extension Cable
RJ45 - Ethernet Adapter Cable
MO16/19/24 Cable Retention Bracket
Rear mount bracket kit for MO16/19/24 monitors
MO16 Bezels
Suncover, Simrad 16" Monitor

Specifications

Display
Backlight Color: White
Display Resolution: 1920x1080
Display Size: 16 inches
Screen Brightness: 1200 nits
Viewing Angles: 80° top/bottom, 80° left/right
Physical
Compass Safe: 50 cm (19.7")
Dimensions W x H x D: 400.1 x 260 x 83 mm (15.75 x 10.24 x 3.27") With bracket: 474.9 x 307.5 x 222.5 mm (18.7 x 12.1 x 8.76”)
Mounting Type: Panel or Bracket mount (use optional heavy duty bracket 000-13547-001
Weight: 3.9 kg (8.6 lbs.)
Electrical
Power Consumption max: 40 W +- 4 W
Recommended Fuse Rating: 6 A @ 12 V DC
Supply Voltage: 10 - 32 V DC
Environment
Operating Temperature Range: -15°C to +55°C (5° F to 131° F)
Shock Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range: "-20°C to +60°C (4°F to 140°F)
Waterproofrating: IPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof
Connectivity
Bluetooth: Internal
Ethernet Ports: 3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001)
Connectivity Wi Fi: Internal 802.11b/g/n
N2K PG Ns: Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183 Sentences supported: Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity: HDMI Video in from a PC
SD Card Storage: 1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS
Video: 2x composite video (BNC)1x high definition video (1080p, HDCP 1.4, HDMI-A)1x high definition video output (1080p, no HDCP, HDMI-A)
MFD
AIS: Receive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K)
Autopilot: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography included: World basemap
Digital Switching: BEP C-Zone, Naviop
GPS: External GPS required
Internal Storage: 16 GB
Multimedia: via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Sonar Compatibility: External echo sounder module or connection to an MFD with built in echo sounder that can share sonar over Ethernet is required.
Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Weather: SiriusXM via WM-3 (USA only), GRIB
GPS
Correction: N/A
GPS Receiver Channels: N/A
Position Accuracy: N/A
Time to First Fix: N/A
Update rate: N/A
Autopilot
Manouevres Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Approvals
Approvals Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Other
Interface: Touch screen, OP40 or OP50 controller via NMEA 2000
Languages: Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
Warranty Period: 2 Years
