Cruise 9 with US Coastal map and 83/200 Transducer

SKU: 000-14997-001

Simrad Cruise is the most intuitive, easy-to-use chartplotter available. Everything you need for simple and straightforward GPS navigation is right inside the box – sunlight viewable display with US coastal charts, mounting bracket and a sonar transducer. Simrad Cruise can displaycharts, navigation and sonar in split-screen view, or separately in full screen. Rotary dial and keypad controls make navigating through menus, creating routes and accessing temperature, speed, depth readings and battery voltage effortless.

DISCONTINUED

View Key Features View Specifications

Screen Size

5" 7" 9"

Cruise

Simrad Cruise is the most intuitive, easy-to-use chartplotter available. Everything you need for simple and straightforward GPS navigation is right inside the box – sunlight viewable display with US coastal charts, mounting bracket and a sonar transducer. Simrad Cruise can display charts, navigation and sonar in split-screen view, or separately in full screen. Rotary dial and keypad controls make navigating through menus, creating routes and accessing temperature, speed, depth readings and battery voltage effortless.

Smooth Navigation Between Menus

Simrad Cruise features intuitive menus, so you can quickly find the information you need, when you need it, and rotary dial and keypad controls make navigating from screen to screen effortless. Put away the instruction manual; with Simrad Cruise, you simply turn on your display and go!

Always on course

Know where you are and where you are going! Pre-loaded with a US coastal map and worldwide basemap, Simrad Cruise comes complete with all the charts you need to enjoy your day on the water. Want more detail? Choose from a wide range of enhanced charts from C-MAP® and Navionics®, and enjoy advanced features like C-MAP® Easy Routing for a true navigation experience.

Everything in view

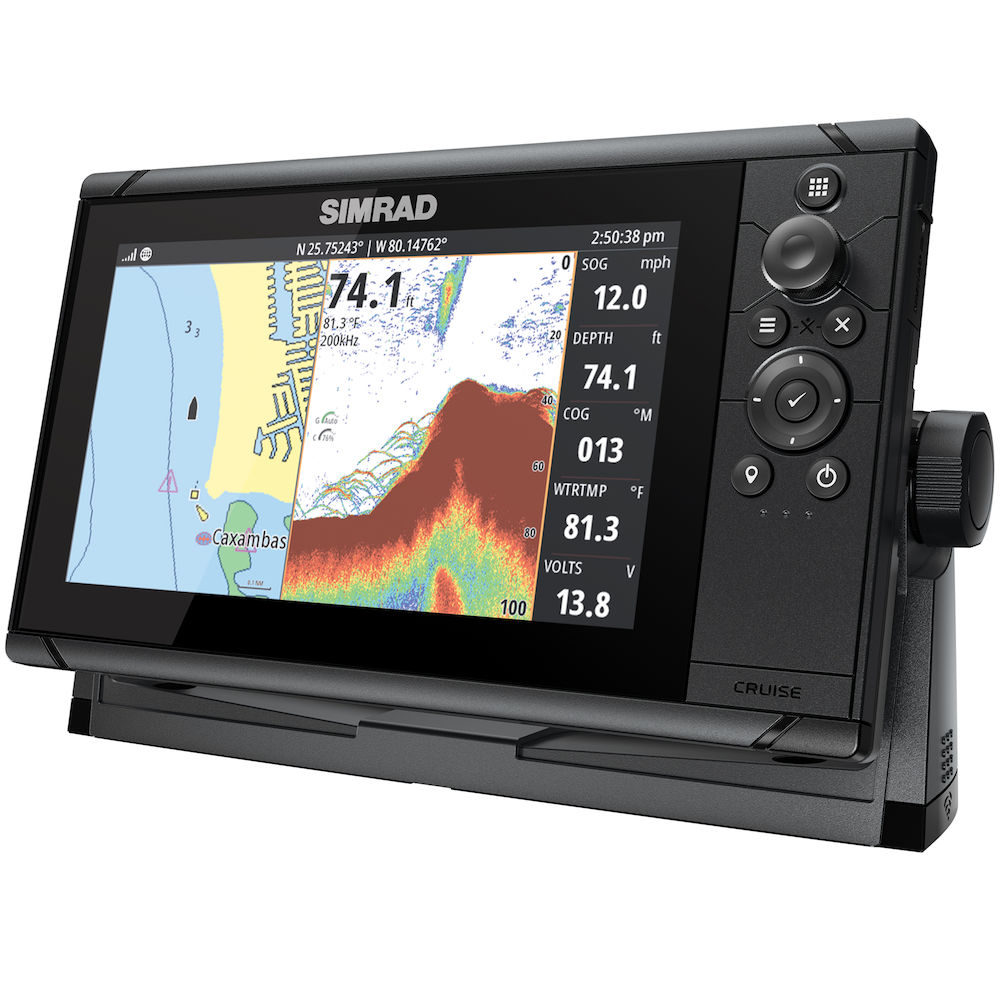

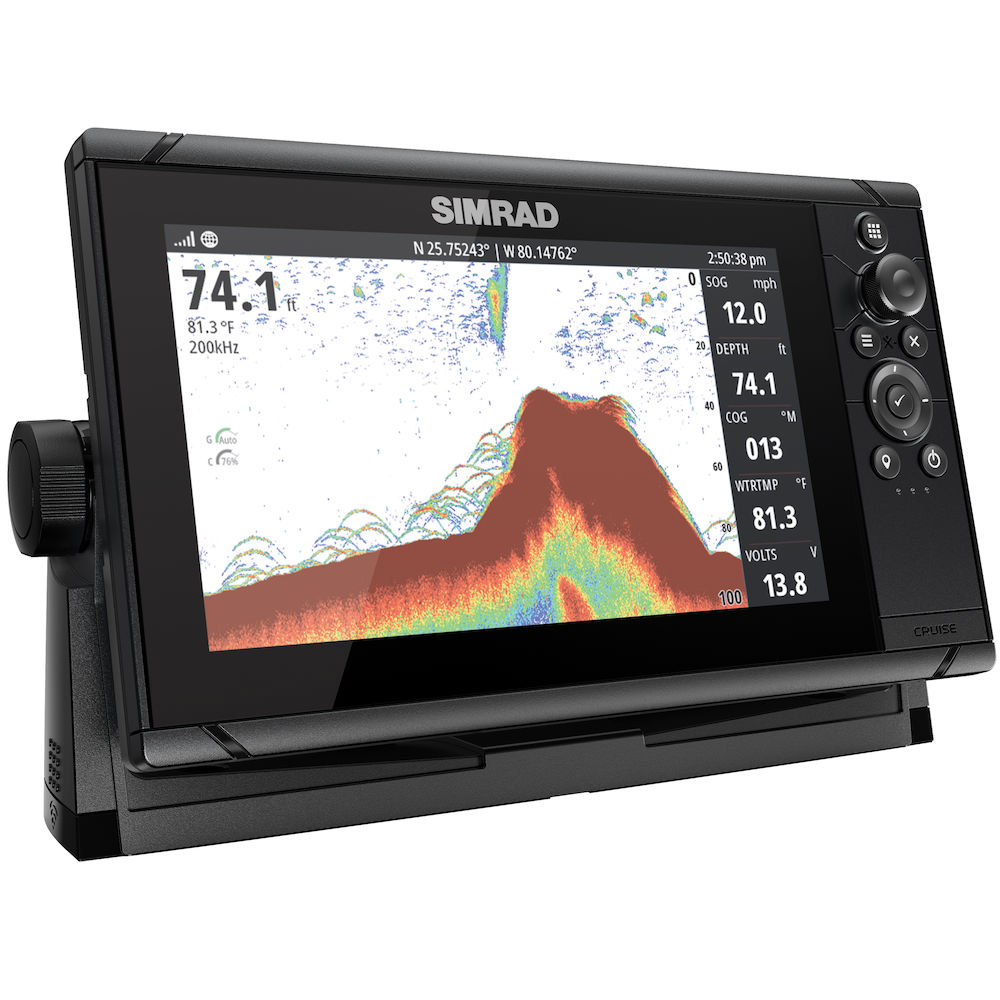

See the details you want the way you want them! Simrad Cruise offers both full and split-screen views, so you can easily display the information you need. Plotting your course? Select full screen charts for a maximum view of your surroundings. Not sure what’s underneath you? Choose full screen sonar for a clear view of the bottom and automatic depth tracking. Want to see it all? Use the split-screen option for the perfect combination of chart and sonar data.

Stay informed

Simrad Cruise gives you access to the information you need for a safe and enjoyable time on the water. Depth readings, position, battery voltage and other critical boat information, can all be monitored on your screen for quick reference and situational awareness.

Key Features

Cruise confidently with simple menus plus easy-to-use rotary dial and keypad controls
Pre-loaded US coastal map
Supports a wide range of enhanced charts from C-MAP® and Navionics®
Pre-selected split screens to keep important data in view
Display depth, position, battery voltage and more

HOOK² / Reveal & Cruise Power Cable (5/7/9/12)
Cruise / Hook² 83/200 Skimmer Transducer
NSS Evo3, Cruise & Zeus³ Rotary Knob
NSS9 evo3/3S, Cruise 9 & Zeus³/3S 9 Gimbal Bracket

Specifications

Display
Backlight Color: White
Display Resolution: 800x480
Screen Brightness: 1000 nits
Viewing Angles: 70° top/bottom, 70° left/right
Physical
Dimensions W x H x D: 311 mm x 165.8 x 92.6 mm (12.24" x 6.53" x 3.65") (with bracket)
Mounting Type: Bracket or Panel
Electrical
Power Consumption max: 19.4 W
Recommended Fuse Rating: 3A
Supply Voltage: 10 - 17 V DC
Environment
Operating Temperature Range: "-15°C to +55°C (5° F to 131° F)
Waterproofrating: IPX 6 and 7
Connectivity
Bluetooth: None
Ethernet Ports: None
Connectivity Wi Fi: None
N2K PG Ns: N/A
NMEA 0183 Sentences supported: No
NMEA 2000 Connectivity: None
PC Connectivity: None
SD Card Storage: 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
Video: None
MFD
AIS: N/A
Autopilot: N/A
Cartography included: C-MAP US Coastal
Digital Switching: N/A
GPS: Internal, 1Hz, WAAS, MSAS, EGNOS
Multimedia: N/A
Sonar Compatibility: Integrated CHIRP. 8 Pin push fit connector
Weather: N/A
Other
Interface: Directional cursor button and rotary dial
Languages: Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
Warranty Period: 2 Years
